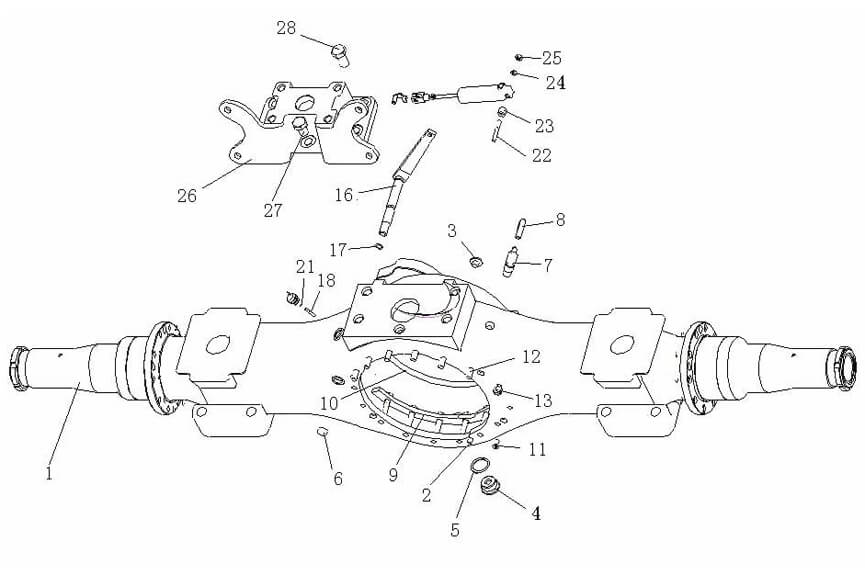

ST16 Middle Axle Housing
| No. | Part No. | Part Name | Qty |
| 1 | AZ9231330588 | First axle housing | 1 |
| 2 | Q5211016 | Pin | 1 |
| 3 | 190003962021 | Screw | 1 |
| 4 | WG9231330015 | Magnet plug | 1 |
| 5 | Q72336 | Gasket | 1 |
| 6 | 190003989290 | Croe plug | 1 |
| 7 | WG9231330105 | Breather | 1 |
| 8 | WG9231330106 | Hosepipe | 1 |
| 9 | WG9014330146 | Connecting clip below | 1 |
| 10 | WG9014330147 | Connecting clip above | 1 |
| 11 | Q2540820 | Screw | 4 |
| 12 | 190003810631 | Stud | 4 |
| 13 | 190003888457 | Nut | 16 |
| 14 | WG2297Y4835 | Nameplate | 1 |
| 15 | 190003904529 | Screw | 2 |
| 16 | WG9014330126 | Lever | 1 |
| 17 | 1680M 320015 | O-ring | 1 |
| 18 | WG69000330008 | Pin | 1 |
| 19 | WG69000330009 | Pin | 1 |
| 20 | WG9100330010 | Pin | 1 |
| 21 | Q43705 | Snap ring | 1 |
| 22 | Q1200850F3 | Stud | 1 |
| 23 | WG61000060084 | Sleeve | 1 |
| 24 | Q40108 | Washer | 1 |
| 25 | Q33208 | Nut | 1 |
| 26 | WG9231340042 | Bracket | 1 |
| 27 | Q151B2035TF2 | Screw | 1 |
| 28 | Q151B2040TF2 | Screw | 4 |
