Description

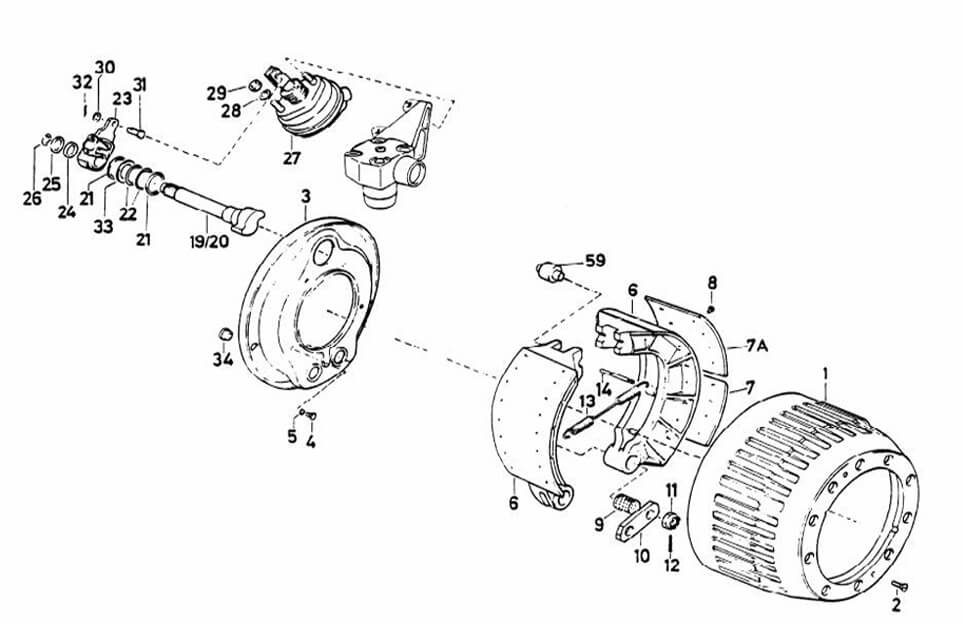

Front Axle Wheel & Brake
| No. | Part No. | Part Name | Qty |
| 1 | AZ9112440001 | Brake drum | 2 |
| 2 | Q2541025 | Bolt | 4 |
| 3 | WG9112440006 | Dust shield | 2 |
| 4 | Q150B0816 | Screw | 8 |
| 5 | Q40308 | Shim | 8 |
| 6 | AZ9100440018 | Brake shoe | 4 |
| 7 | WG9100440029 | “T”brake lining | 4 |
| 7a | WG9100440027 | “T”brake lining | 4 |
| 8 | WG9231340068 | Rivet | 56 |
| 9 | WG880440006 | Bushing | 4 |
| 10 | WG880440008 | Washer | 2 |
| 11 | 190003872369 | Castle nut | 4 |
| 12 | Q5005045 | Cotter pin | 4 |
| 13 | AZ9100440061 | Return spring | 2 |
| 14 | WG1218G85 | Return spring pin | 4 |
| 19 | 199100440001 | Camshaft (left) | 1 |
| 20 | 199100440002 | Camshaft (right) | 1 |
| 21 | 1880440010 | Washer | 4 |
| 21 | AZ9100440011 | Washer | 4 |
| 21 | AZ9100440012 | Washer | 4 |
| 22 | 1880340023 | “O”sealring | 4 |
| 23 | WG9100440023 | Automatic rod adjuster | 2 |
| 23a | AZ9100349994 | Bracket | 1 |
| 23b | AZ9100349995 | Bracket | 1 |
| 23c | Q150B0818 | Screw | 2 |
| 23d | Q33408 | Nut | 2 |
| 24 | WG880340022 | Shim | 2 |
| 25 | WG80320028 | Shim | nB |
| 25 | WG80320029 | Shim | nB |
| 25 | WG80320030 | Shim | nB |
| 25 | WG80320046 | Shim | nB |
| 26 | 190003933116 | Washer | 2 |
| 27 | WG9000360100 | Diaphragrm cyl.left | 1 |
| 27a | WG9000360101 | Diaphragrm cyl.Right | 1 |
| 28 | Q41216 | Shim | 4 |
| 29 | Q340B16 | Nut | 4 |
| 30 | Q40114 | Flat shim | 2 |
| 31 | Q5101440 | Pin | 2 |
| 32 | Q5004022 | Cotter | 2 |
| 33 | 1880440015 | Spacers | 2 |
| 34 | 1880340037 | Plug | 4 |
| 59 | WG9100440021 | Roller | 4 |
