Intake Manifold and Exhaust Manifold
Description

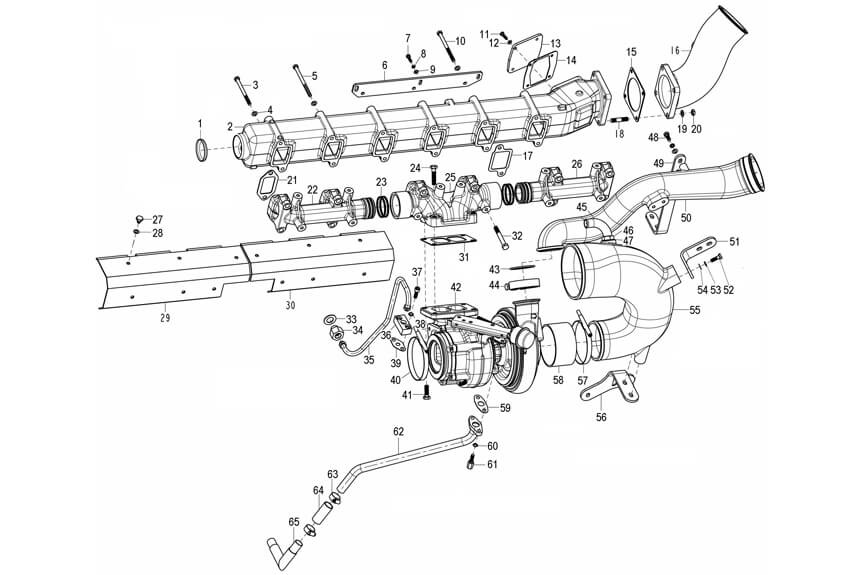

Intake Manifold and Exhaust Manifold
| No. | Part No. | Part Name | Qty |
| 1 | 190003989286 | Core plug | 1 |
| 2 | VG1246110060 | Intake manifold asse. | 1 |
| 2.1 | VG1246110061 | Intake manifold | 1 |
| 3 | Q150B08100 | Screw | 2 |
| 4 | Q41808 | Spring washer | 12 |
| 5 | Q150B08110 | Screw | 7 |
| 6 | VG1246110203 | Support plate | 1 |
| 7 | Q150B0620 | Screw | 3 |
| 8 | Q40306 | Spring washer | 3 |
| 9 | Q40106 | Washer | 3 |
| 10 | Q150B08115 | Screw | 3 |
| 11 | Q150B0620 | Screw | 4 |
| 12 | Q41808 | Spring washer | 4 |
| 13 | VG15GK0010002 | Heater assembly | 1 |
| 13 | VG1540110011A | cover | 1 |
| 14 | VG2600110457 | Gasket | 1 |
| 15 | VG1560110180 | Gasket | 1 |
| 16 | VG1246110093 | Intake pipe connector | 1 |
| 17 | VG1246110006 | Gasket | 6 |
| 18 | Q1201030F3 | Stud | 4 |
| 19 | Q41810 | Spring washer | 4 |
| 20 | Q340B10 | Nut | 4 |
| 21 | VG1246110028 | Gasket | 6 |
| 22 | VG1246110108 | Front exhaust manifold | 1 |
| 23 | VG1246110027 | Sealing ring | 8 |
| 24 | VG1500110002 | Screw | 2 |
| 25 | VG1246110109 | Mid exhaust manifold | 1 |
| 26 | VG1246110110 | Rear exhaust manifold | 1 |
| 27 | VG1500110963 | Screw | 12 |
| 28 | Q40208 | Washer | 12 |
| 29 | VG1246110112 | Cover | 1 |
| 30 | VG1246110111 | Cover | 1 |
| 31 | VG1540110017 | Gasket | 1 |
| 32 | VG1246110052 | Screw | 12 |
| 33 | VG9003080007 | Gasket | 1 |
| 34 | VG1246110046 | The intake oil pipe seat | 1 |
| 35 | VG1242110003 | Tube intake oil pipe ass. | 1 |
| 37 | Q218B0825 | Screw | 2 |
| 38 | VG188250083 | Washer | 2 |
| 39 | VG609E110050 | Gasket | 1 |
| 40 | VG1034110100 | Clamp | 1 |
| 41 | VG1246110058 | Screw | 2 |
| 42 | VG1246110020 | Turbo supercharger | 1 |
| 43 | VG190320035 | Sealing ring | 1 |
| 44 | VG1560110226 | Clip | 1 |
| 45 | VG1246130016 | Air intake connector | 1 |
| 46 | 190003559778 | Nut | 1 |
| 47 | VG2600130037 | Washer | 1 |
| 48 | Q150B0820 | Screw | 2 |
| 49 | VG1242110002 | Bracket | 1 |
| 50 | VG1246110094 | Tube | 1 |
| 51 | VG1242110001 | Bracket | 1 |
| 52 | Q150B0825 | Screw | 10 |
| 53 | Q40308 | Spring washer | 12 |
| 54 | Q40108 | Washer | 12 |
| 55 | VG1246110095 | AIR intake pipe | 1 |
| 56 | VG1246110098 | Bracket | 1 |
| 57 | 190003989315 | Hose clip | 2 |
| 58 | VG1246110102 | Hose | 1 |
| 59 | VG2600110048 | Joint | 1 |
| 60 | VG188250083 | Washer | 2 |
| 61 | VG1460070014 | Screw | 2 |
| 62 | VG1246110055 | Oil return tube ass. | 2 |
| 63 | 190003989301 | Hose clip | 2 |
| 64 | VG2600070071 | Hose | 1 |
| 65 | VG1246110022 | Hose | 1 |
| 66 | Q41806 | Shim | 4 |
| 67 | VG1242110004 | Tube | 1 |
| 68 | 190003559563 | Ring | 2 |
| 69 | 190003559513 | Nut | 2 |
| 70 | VG1560110152 | Flange | 1 |
| 71 | VG1246110056 | Tube | 1 |
| 72 | VG1560110039 | Flange | 1 |
| 73 | 202V15201-6166 | clamp | 1 |
| 74 | Q150B0855 | Bolt | 1 |
| 75 | Q33408 | Nut | 1 |
| 76 | VG1047110137 | Cover | 1 |
| 77 | VG29130A | Cover | 1 |
| 78 | VG1246110122 | Cover | 2 |
| 79 | VG1540110011A | Plate | 1 |
